VoIP Business Edition is a solution intended for the end user that extends the communication functionality on your IP PBX

With VoIP Business Edition, make calls from a browser on any operating system without restricting the communication to additional software requirements or physical phones; enables the increase of users at a very low cost. With VoIP Business Edition we are returning to the days of remote user is perfect for telecommuting.

Featured: embedded webphone, chat through sip, LDAP support, presence

Features

Embedded Webphone
An elegant webphone embedded in the user’s web interface. Users with an enabled extension can make and receive calls from the Elastix user’s interface, without a hardphone; useful when working remotely.
Internal Chat
Chat through SIP integrated into the Webphone pane of VoIP Business Edition. Internal users can make and receive chat messages and receive notifications with the user’s name and an extract of the current message. Compatible with Live Chat functionality.
WebRTC and Opus by default
VoIP Business Edition uses WebRTC on the embedded Webphone, ensuring two characteristics: Opus codec that allows one of the best available compressions, and Encryption calls.
Internal Directory
The internal directory available displays the total of users of the company, allowing to start a chat conversation or direct dialling.
Support for LDAP
We can add the LDAP server of our company to VoIP Business Edition as an additional source of contacts to make a call.
Presence
Allows to define the status of any user, and display it on the internal directory.

Screenshots

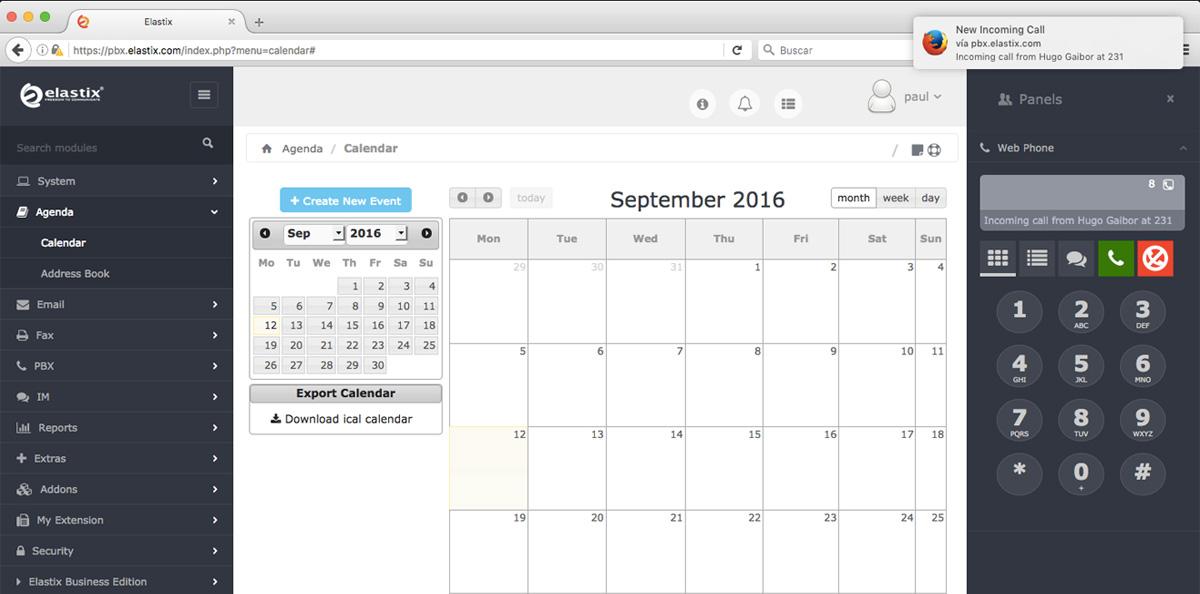

Incoming Call
Call notifications on the web browser
Internal Chat
Chat through SIP

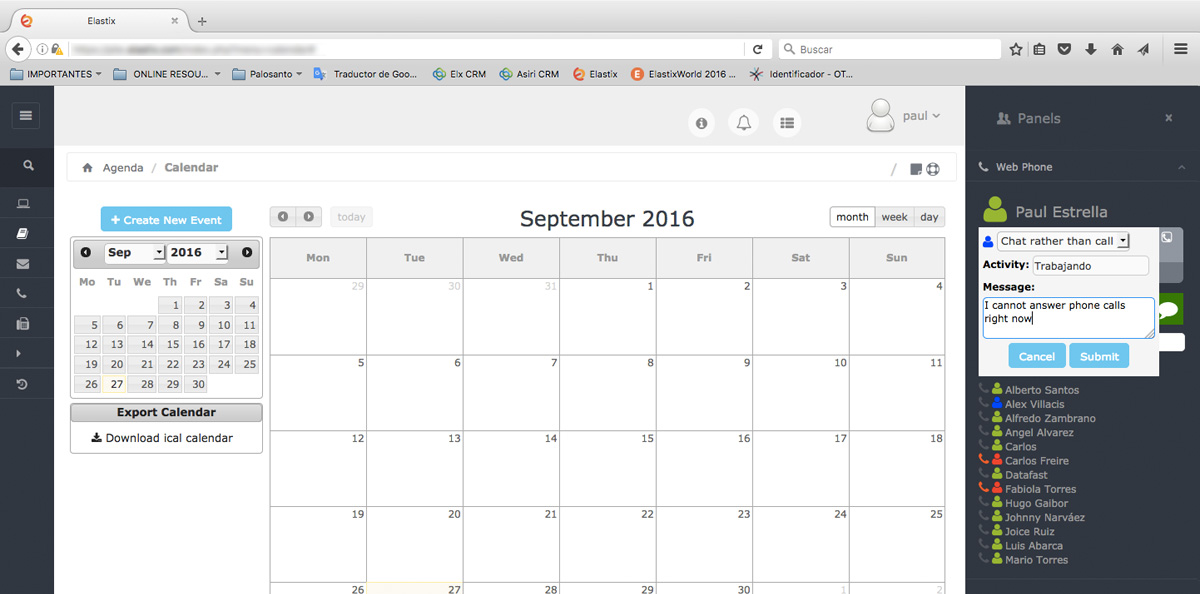

Presence
Change your presence status to avoid disruptions

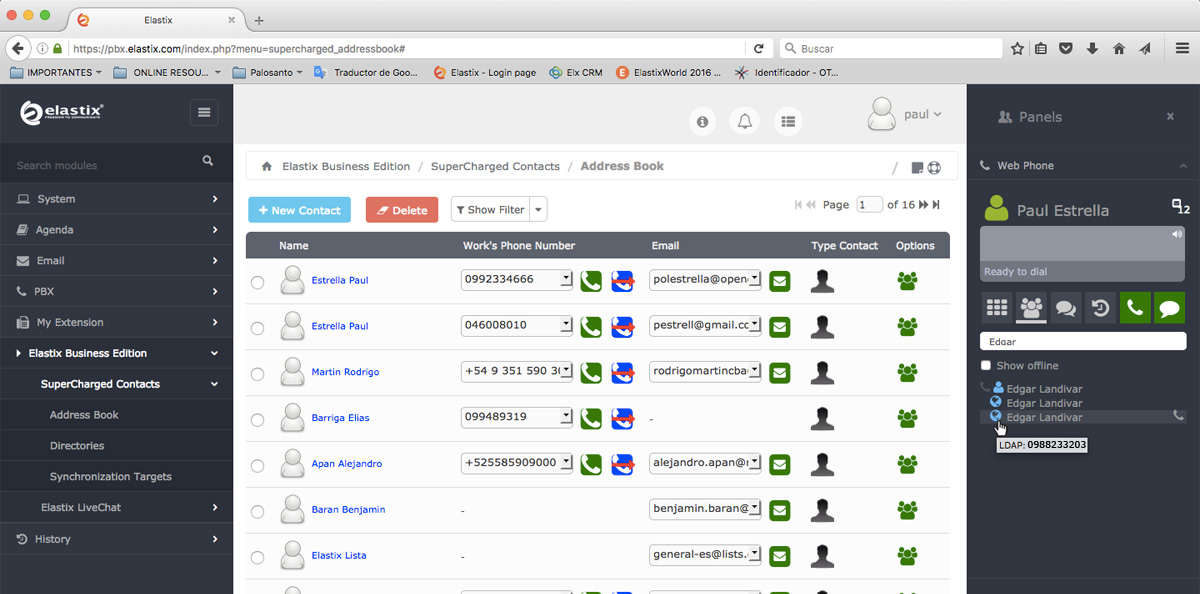

LDAP Support
Search additional contact information with LDAP and make a call

Resources

Actual Version

1.0.0-1

Compatible with:

Elastix 4

Note: Elastix and the Elastix logo are registered trademarks of 3CX.

Recommended browsers

Firefox
Chrome

How to install VoIP Business Edition in Elastix?

IMPORTANT: Do not install Elastix Business Edition from the addons menu available in the Elastix GUI

To install Elastix Business Edition, it is necessary to enter the server Linux Console.

1.- Install “wget” with the following command:

yum install wget

Note: if your server has wget already, skip this step.

2.- Go to the following directory: /etc/yum.repos.d

cd /etc/yum.repos.d

3.- Once in the directory – /etc/yum.repos.d – execute:

wget http://repo.dinomi.com/dinomi/dinomi-pbx-addons-4.repo

4.- To clean the yum cache execute:

yum clean all

5.- To install Elastix Business Edition execute:

yum install elastix-businessEdition

6.- Enter the Elastix Web GUI as an admin user, go to Elastix Business Edition -> About us. Enter the license of Elastix Business Editon in the “Activation code” box and click on “Activate”.

If you have Elastix Business Edition already installed, and you haven’t performed this process yet, please update following steps 1 to 4 and then execute:

yum update elastix-businessEdition

How to enable the WebPhone?

To enable web phone you need to associate a user with an extension previously created. First we must create the user.

Go to System -> Users -> Users: Create New User

We create the user, with a strong password within the group “Extension”*. In the PBX Profile section select the extension that will be used by the user, then save.

* The group “Extension”is automatically created when you install Elastix. This group has limited privileges and is ideal for a user who does not need admin access or supervision to any section.

Once you have created the account we must go to: Elastix Business Edition -> Elastix WebPhone.

In this section we will enable the user’s extension to use the embedded WebPhone.

Select the extension – in the example is the 290 – and click on the “Enable WebRTC on selection” button. Once you’ve enabled the extension the end user can use the embedded WebPhone from the Elastix user interface.

To use the WebPhone the user must click the button shown on the yellow box in the image; after doing this the WebPhone will be displayed and the user can star making calls. If you need to use a hardphone in combination with your WebPhone, the phone must support SRTP and that option must be enabled.

To disable the WebPhone go back to VoIP Business Edition -> Elastix WebPhone, select the extension and click on “Disable WebRTC on selection”.
